TrolMaster Hydro-X Temp Device Station DST-2

Price:

$185.00

Out of Stock

Enquire Now

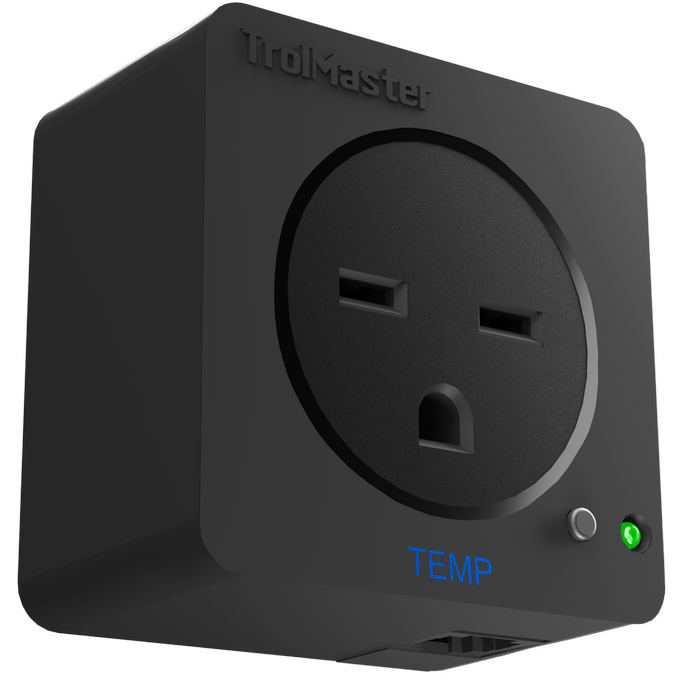

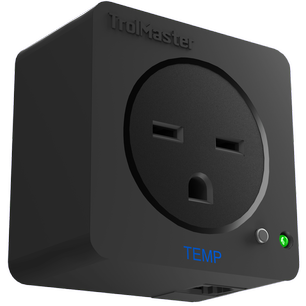

240V Temperature Device Station(DST-2)*Suited for Nz plugs (not pictured)

The TrolMaster DST-2 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. Any heating or cooling device that is 10-amps @ 240 volts or less can be controlled by the DST-2.




LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.



LED Power Indicator

RJ12 Cable Socket

Addressing

Plug & Play
