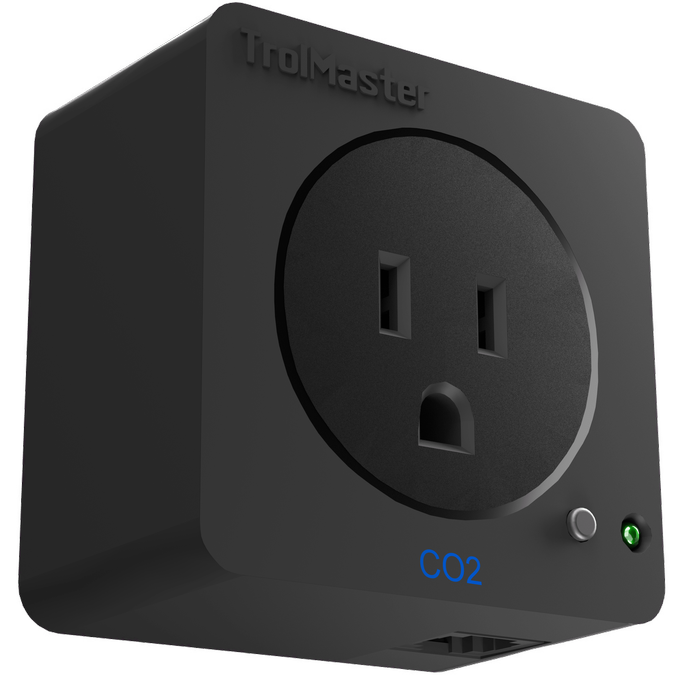

TROLMASTER - HYDRO X CO2 CONTROL STATION
The TrolMaster DSC-2 CO2 control / device module allows user to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. Any CO2 device that is 10-amps @ 240 volts or less can be controlled by the DSC-2
SPECIFICATIONS:
Input Voltage: 100~240 VAC, 50/60Hz
LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
